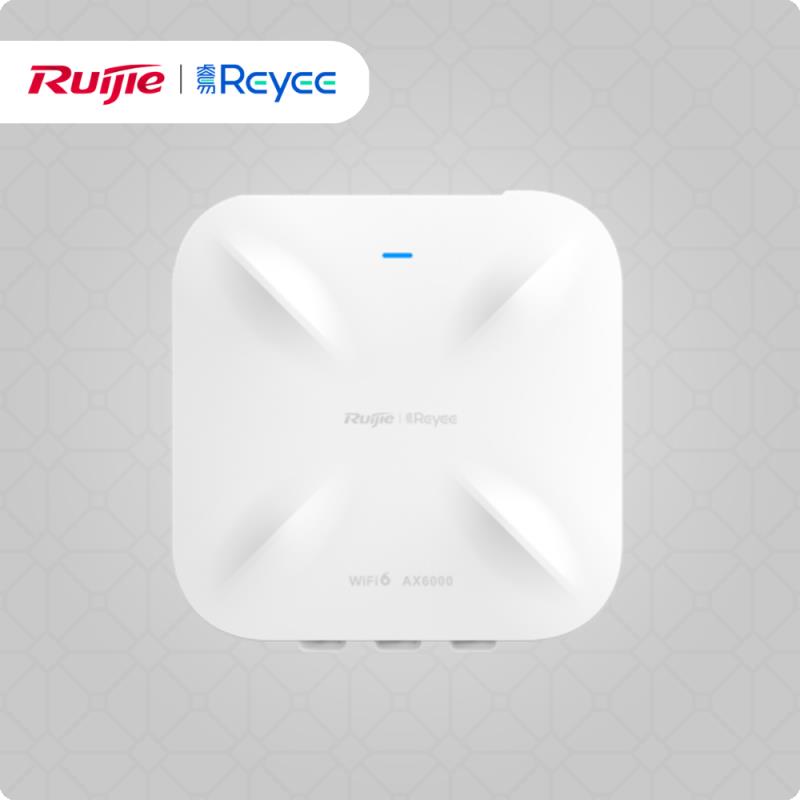

The Ruijie RG-RAP6260(H) is a high-performance 5950Mbps Wi-Fi 6 AX6000 Access Point that supports 2.4GHz and 5GHz dual-band communication, providing the rate of 1148 Mbit/s at 2.4 GHz, 4804 Mbit/s at 5 GHz, and up to 5,952 Mbit/s per AP. The Reyee cloud-managed series APs support Multi-user Multiple Input, Multiple Output (MU-MIMO) dual-stream technology and seamless layer 3 roaming.
With a revolutionary combination of OFDMA and 1024QAM, the latest 802.11ax standard, the 160MHz band, and dual band 4x4 MU-MIMO, RG-RAP6260(H) wireless aggregation rate reaches 5.95Gbps, the best-in-class Wi-Fi performance.
The integrated gigabit SFP port supports extra-long-distance access point deployment, supporting up to 20km transmission from the data centre with single mode fibre.
Easy Set-Up
Self-Organizing Networking (SON) eliminates product limitations and realizes auto-discovery, auto-networking, and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet
access. The mobile app allows you to quickly complete device deployment and configuration, remote management, operation and maintenance (O&M) of the entire network, which greatly reduces the investment of device, labor, and time cost during wireless network construction.

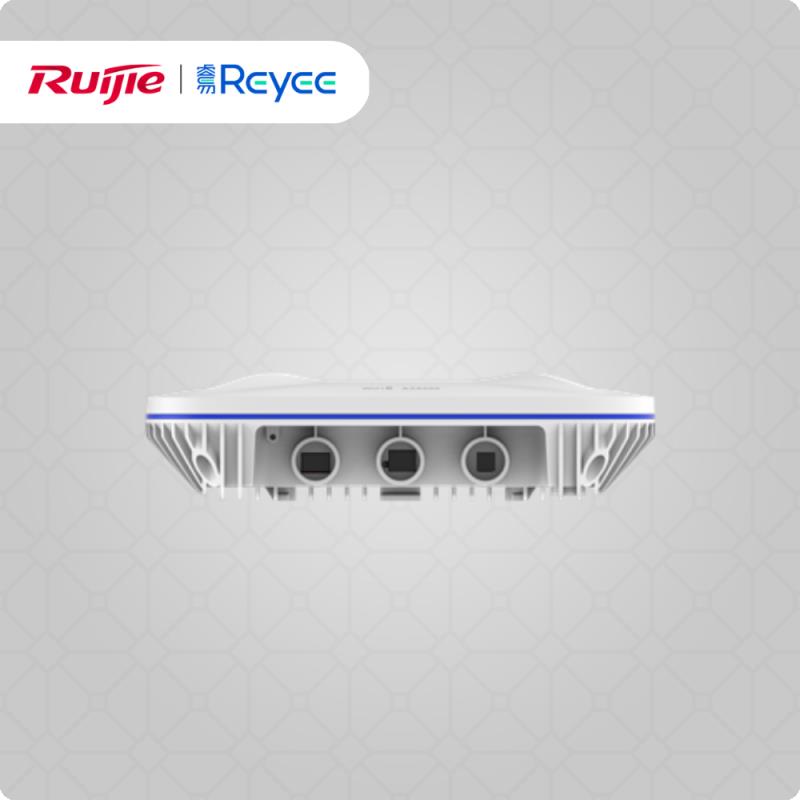

Interface
The Ruijie RG-RAP6260(H) adopts completely sealed, waterproof, dustproof, moisture proof, flame-retardant, wind erosion protection, wide temperature range, and 4kV surge protection design, with IP68 rated protection against dust and water ingress.
Comparison
Features:
SPECIFICATIONS
| Basic Features | |
| Wi-Fi Standards | Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g |
| MIMO | 2.4GHz, 4x4, MU-MIMO 5GHz, 4x4, MU-MIMO |
| Max. Wi-Fi Speed | 2.4GHz: 1148Mbps 5GHz: 4804Mbps |
| Antenna | 8 |
| Antenna Type | Built-In Omnidirectional |
| Antenna Gain | 2.4GHz: 3dBi 5 GHz: 4dBi |
| Transmit Power | EIRP: ≤35dBm (2.4GHz) ≤36dBm (5GHz) country-specific restrictions apply |
| Fixed Ports | 1 x 100/1000/2500 Base-T port 1 x 1GBase-X SFP port 1 x DC port 1 × Reset button |
| Max. Clients | 512 |
| Recommended Clients | 130 |
| Max. SSIDs | 8 |
| Recommended Wi-Fi Coverage Radius | 2.4GHz: 50 meters 5GHz: 150 meters The Wi-Fi coverage is related to the installation environment of the access point. |
| Max. Wi-Fi Coverage Radius | 300 meters |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz country-specific restrictions apply |
| Software Feature - WLAN Basic Features | |
| Power Adjustment | Yes |
| Frequency Bandwidth | 2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80/160 MHz |
| Roaming | Layer 2 roaming Layer 3 roaming |
| OFDMA | Yes |
| Beamforming | Yes |
| WMM | Yes |
| Radar Signal Detection and Frequency Hopping (DFS) | Yes |
| WLAN Security | |
| Wi-Fi Password | 16 Digits |
| Security Mode | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| Blacklist and Whitelist | Yes |
| Enhanced User Experience | |
| Wi-Fi Optimization | Yes |
| STA Limit | Yes |
| Removing Low-RSSI STAs | Yes |
| Adjusting Sending Rate of Beacon and Probe Response | Yes |
| Syslog Recording Why Users Lose Connection | Yes |
| Auto Channel and Power Adjustment on Cloud | Yes |
| RSSI Threshold for STA Access | Yes |
| Load Balancing | Yes |
| Networks | |
| Network Access Mode | PPPoE Client DHCP Client Static IP |
| VLAN | Yes |
| DHCP Server | Yes |
| System | |
| Cloud Management | Yes |
| APP Management | Yes |
| APP Upgrade | Yes |
| APP Restart | Yes |
| Scheduled Restart | Yes |
| Default Access/Password | 10.44.77.253 No Password Required by Default |
| Local Upgrade | Yes |
| Online Upgrade | Yes |
| Dual-bin Backup | Yes |
| Factory Reset | Yes |
| Language | Chinese English |
| System Log | Yes |
| Diagnostics | Yes |
| Network Check | Yes |
| Physical | |
| LED Indicator | 1 × System LED indicator |
| Buttons | 1 × Reset button |
| Dimensions (W × D × H) | 300 mm x 300 mm x 75.5 mm (Without Mounting Bracket) |
| Weight | Main Unit: 3.5 kg Mounting Bracket: 1.35kg |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Installation | Wall-Mountable/Pole-Mountable |
| Mounting Bracket Dimensions (W × D × H) | 124 mm x 120 mm x 35 mm |
| Mounting Hole Pattern | 65 mm x 105 mm |
| Mounting Hole Diameter | 9 mm |
| Pole Diameter | 70 mm to 140 mm |
| Power Supplies | IEEE 802.3bt PoE DC 48V/1A |
| Power Consumption | ≤ 40W |
| PoE Power Budget | N/a |
| Environmental | |
| Operating Temperature | -40°C ~ 65°C |
| Storage Temperature | -40°C ~ 85°C |
| Operating Humidity | 0% to 100% Noncondensing |
| Storage Humidity | 0% to 100% Noncondensing |
| IP (Ingress Protection) | IP68 |
| Port Surge | 4kV |
| MTBF | >400000H |
| Package Contents | |
| Access Point | 1 |
| Hose Clamp | 2 |
| Mounting Plate | 1 |
| M8 x 20 Screws | 4 |
| M8 x 60 Expansion Anchors | 4 |
| Cable Gland for SFP Port | 1 |
| Cable Gland for Ethernet Port (Pre-installed on the access point) | 1 |
| SFP Port Plug (Pre-installed on the access point) | 1 |
| Mounting Arm | 1 |
| DC Connector Plug (Pre-installed on the access point) | 1 |
| Cable Gland for DC Connector | 1 |
| Grounding Cable | 1 |
| User Manual | 1 |
| Package Weight | 5.47 kg |
| Package Dimension (w x d x h) | 395 mm x 395 mm x 197 mm |
